Round Tapered Fiberglass Light Poles
Alliance™ round tapered fiberglass light poles are engineered to provide a straightforward solution suitable for any climate and look good in any community.
Wide range of products
- Decorative base and base cover options available
- Anchor Base or Direct Burial
- Standard, Intermediate, Heavy, Extra Heavy Duty, and custom strengths
- Natural or Smooth Finish
- 3-Layers of protection against UV degradation
- 12-40′ Lengths – Single Piece
Bronze
Gray
Black
Green
White
Responsive
Alliance™ provides dependable service from quote to delivery. Our experienced product experts and attractive lead times combine to deliver industry leading service.
Lasting
Our Alliance™ light poles have superior UV protection, which creates an ultra-low maintenance product. Fiberglass is non-conductive and non-corrosive creating ideal installation and service conditions.
Versatile
Alliance™ offers options for nearly every climate and application. Products are lightweight, easy to install, and configurable to fit the needs of any project.
Pole Performance
Alliance poles are available in 1 foot increments from 12 to 40 feet. Common mounting heights are listed in the tables below.
Standard Duty Fiberglass Light Pole
| Overall Length | Above Ground Height | Calculated Effective Projected Area (sq ft) | DRAWING DOWNLOADS WITH TOP CAP | DRAWING DOWNLOADS WITH 2⅜" TENON | DRAWING DOWNLOADS WITH 3" TENON |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90 mph | 100 mph | 110 mph | 120 mph | 130 mph | 140 mph | 150 mph | 160 mph | 170 mph | 180 mph | |||||
| 15' | 12' | 8.7 | 6.6 | 5.0 | 3.8 | 3.0 | 2.8 | 2.3 | 1.9 | 1.6 | 1.4 | Download PDF | Download PDF | Download PDF |
| 20' | 16' | 8.8 | 6.5 | 4.8 | 3.5 | 2.7 | 2.6 | 2.1 | 1.7 | 1.4 | 1.2 | Download PDF | Download PDF | Download PDF |
| 24' | 20' | 9.1 | 6.5 | 4.6 | 3.6 | 3.0 | 2.8 | 2.3 | 1.9 | 1.5 | 1.3 | Download PDF | Download PDF | Download PDF |
| 30' | 25' | 10.8 | 7.6 | 5.8 | 4.5 | 3.7 | 3.5 | 2.9 | 2.4 | 1.9 | 1.6 | Download PDF | Download PDF | Download PDF |
| 35' | 30' | 10.6 | 7.8 | 6.0 | 4.7 | 3.8 | 3.6 | 2.9 | 2.4 | 2.0 | 1.5 | Download PDF | Download PDF | Download PDF |
Intermediate Duty Fiberglass Light Pole
| Overall Length | Above Ground Height | Calculated Effective Projected Area (sq ft) | DRAWING DOWNLOADS WITH TOP CAP | DRAWING DOWNLOADS WITH 2⅜" TENON | DRAWING DOWNLOADS WITH 3" TENON |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90 mph | 100 mph | 110 mph | 120 mph | 130 mph | 140 mph | 150 mph | 160 mph | 170 mph | 180 mph | |||||
| 15' | 12' | 11.9 | 9.2 | 7.2 | 5.7 | 4.6 | 4.3 | 3.6 | 3.1 | 2.7 | 2.3 | Download PDF | Download PDF | Download PDF |
| 20' | 16' | 12.1 | 9.2 | 7.0 | 5.4 | 4.3 | 4.1 | 3.5 | 2.9 | 2.5 | 2.1 | Download PDF | Download PDF | Download PDF |
| 24' | 20' | 12.4 | 9.1 | 6.8 | 5.5 | 4.5 | 4.3 | 3.6 | 3.0 | 2.6 | 2.2 | Download PDF | Download PDF | Download PDF |
| 30' | 25' | 15.8 | 11.6 | 9.1 | 7.4 | 6.1 | 5.9 | 4.9 | 4.1 | 3.5 | 3.0 | Download PDF | Download PDF | Download PDF |
| 35' | 30' | 15.6 | 11.6 | 9.1 | 7.3 | 6.1 | 5.8 | 4.8 | 4.0 | 3.4 | 2.9 | Download PDF | Download PDF | Download PDF |
Heavy Duty Fiberglass Light Pole
| Overall Length | Above Ground Height | Calculated Effective Projected Area (sq ft) | DRAWING DOWNLOADS WITH TOP CAP | DRAWING DOWNLODAS WITH 2⅜" TENON | DRAWING DOWNLOADS WITH 3" TENON |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90 mph | 100 mph | 110 mph | 120 mph | 130 mph | 140 mph | 150 mph | 160 mph | 170 mph | 180 mph | |||||
| 15' | 12' | 15.2 | 11.9 | 9.4 | 7.5 | 6.2 | 5.9 | 5.0 | 4.3 | 3.7 | 3.2 | Download PDF | Download PDF | Download PDF |
| 20' | 16' | 15.5 | 11.9 | 9.3 | 7.3 | 6.0 | 5.7 | 4.8 | 4.1 | 3.6 | 3.1 | Download PDF | Download PDF | Download PDF |
| 24' | 20' | 15.7 | 11.8 | 9.0 | 7.3 | 6.1 | 5.9 | 4.9 | 4.2 | 3.6 | 3.1 | Download PDF | Download PDF | Download PDF |
| 30' | 25' | 22.5 | 17.0 | 13.6 | 11.1 | 9.4 | 9.0 | 7.6 | 6.5 | 5.6 | 4.9 | Download PDF | Download PDF | Download PDF |
| 35' | 30' | 22.2 | 17.0 | 13.6 | 11.1 | 9.3 | 8.9 | 7.5 | 6.4 | 5.5 | 4.8 | Download PDF | Download PDF | Download PDF |
Extra Heavy Duty Fiberglass Light Pole
| Overall Length | ABOVE GROUND HEIGHT | Calculated Effective Projected Area (sq ft) | DRAWING DOWNLOADS WITH TOP CAP | DRAWING DOWNLOADS WITH 2⅜" TENON | DRAWING DOWNLOADS WITH 3" TENON |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90 mph | 100 mph | 110 mph | 120 mph | 130 mph | 140 mph | 150 mph | 160 mph | 170 mph | 180 mph | |||||
| 15' | 12' | 18.4 | 14.5 | 11.6 | 9.3 | 7.7 | 7.4 | 6.3 | 5.4 | 4.7 | 4.1 | Download PDF | Download PDF | Download PDF |
| 20' | 16' | 18.8 | 14.6 | 11.5 | 9.1 | 7.6 | 7.2 | 6.2 | 5.3 | 4.6 | 4.0 | Download PDF | Download PDF | Download PDF |
| 24' | 20' | 19.1 | 14.5 | 11.3 | 9.2 | 7.8 | 7.4 | 6.3 | 5.4 | 4.7 | 4.1 | Download PDF | Download PDF | Download PDF |
| 30' | 25' | 32.4 | 25.1 | 20.3 | 16.7 | 14.2 | 13.6 | 11.7 | 10.1 | 8.8 | 7.7 | Download PDF | Download PDF | Download PDF |
| 35' | 30' | 32.2 | 25.1 | 20.3 | 16.7 | 14.2 | 13.6 | 11.6 | 10.0 | 8.7 | 7.6 | Download PDF | Download PDF | Download PDF |
Contact Alliance engineers at alliance@geotek.com for pole design recommendations.
Engineered for quick and easy installation
Efficient Installation With Direct Burial Light Poles
Alliance™ light poles are engineered to install quickly and easily, reducing your overall project cost. Fiberglass is lightweight, non-conductive, and non-corrosive; creating ideal installation and service conditions.
Alliance Light Pole Benefits
- Same day installation
- No tedious ground preparation
- No additional foundation material cost
- Less installation labor and equipment
Contact Alliance engineers at alliance@geotek.com if you have questions on best practices for your specific direct burial application.
Pole Components

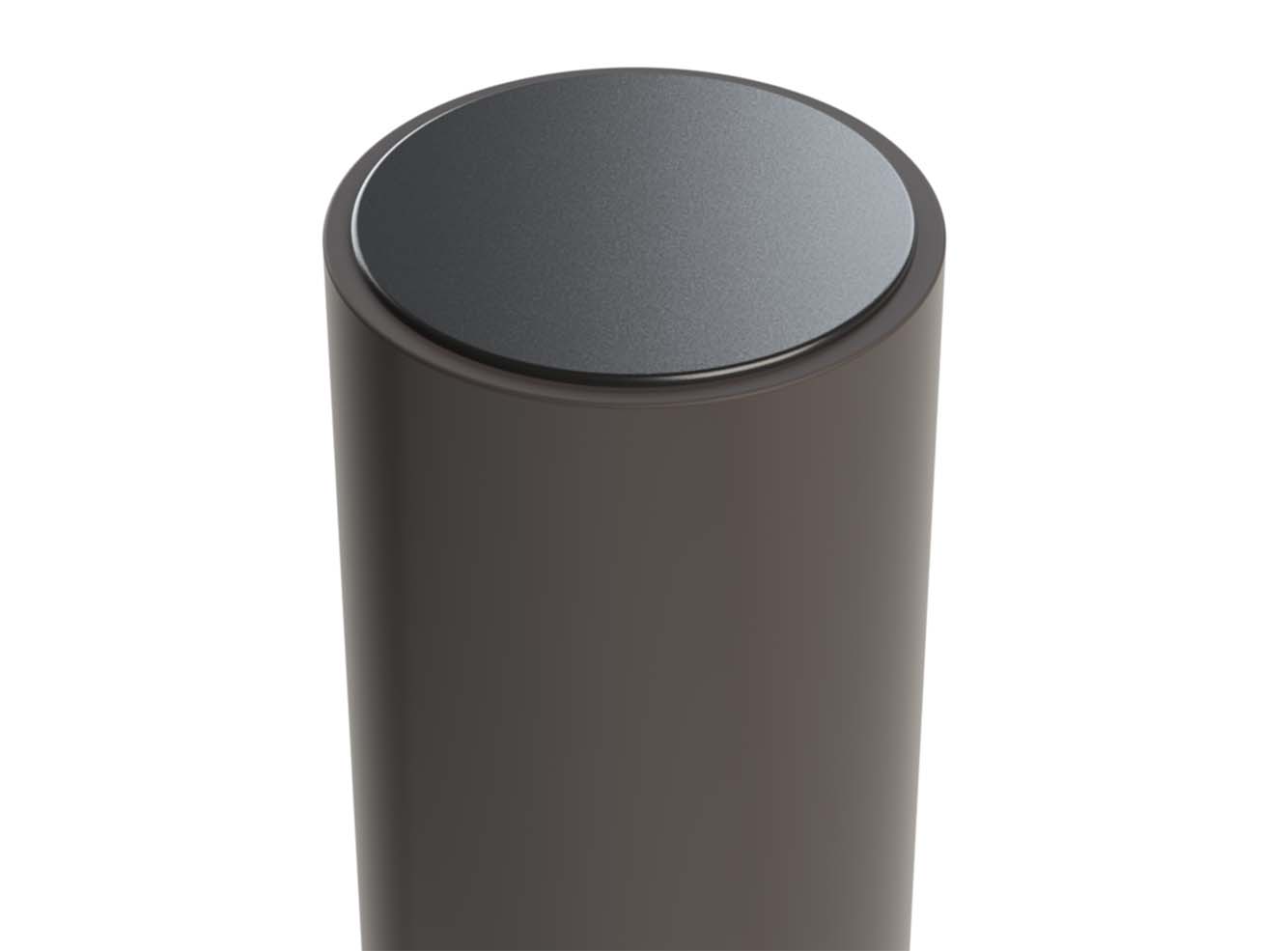

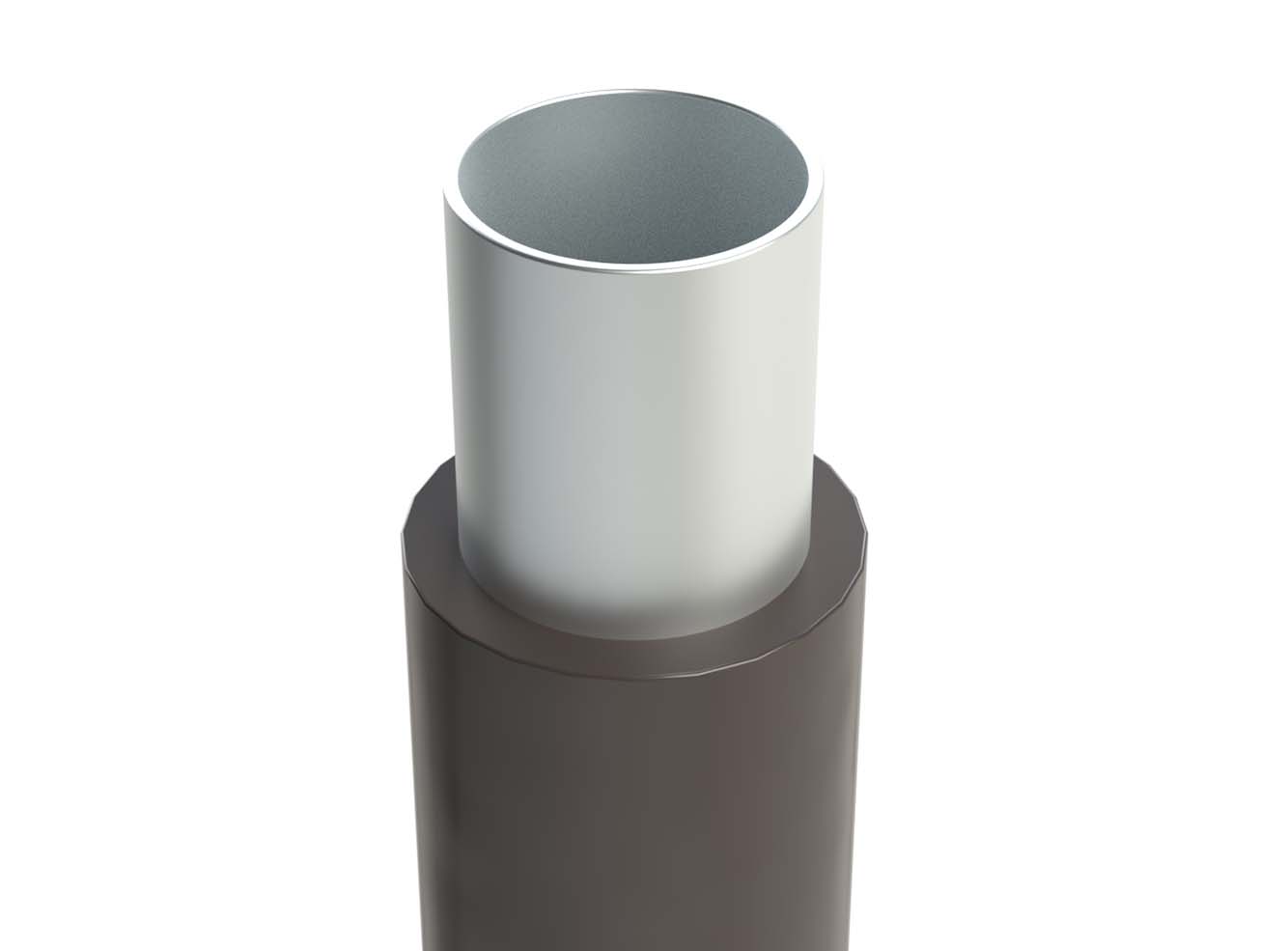

Top Tenon or Cap
Aluminum tenon or plastic top cap is shipped, assembled to the pole. For top mount luminaires, 2-3/8” and 3” diameter tenons are available.

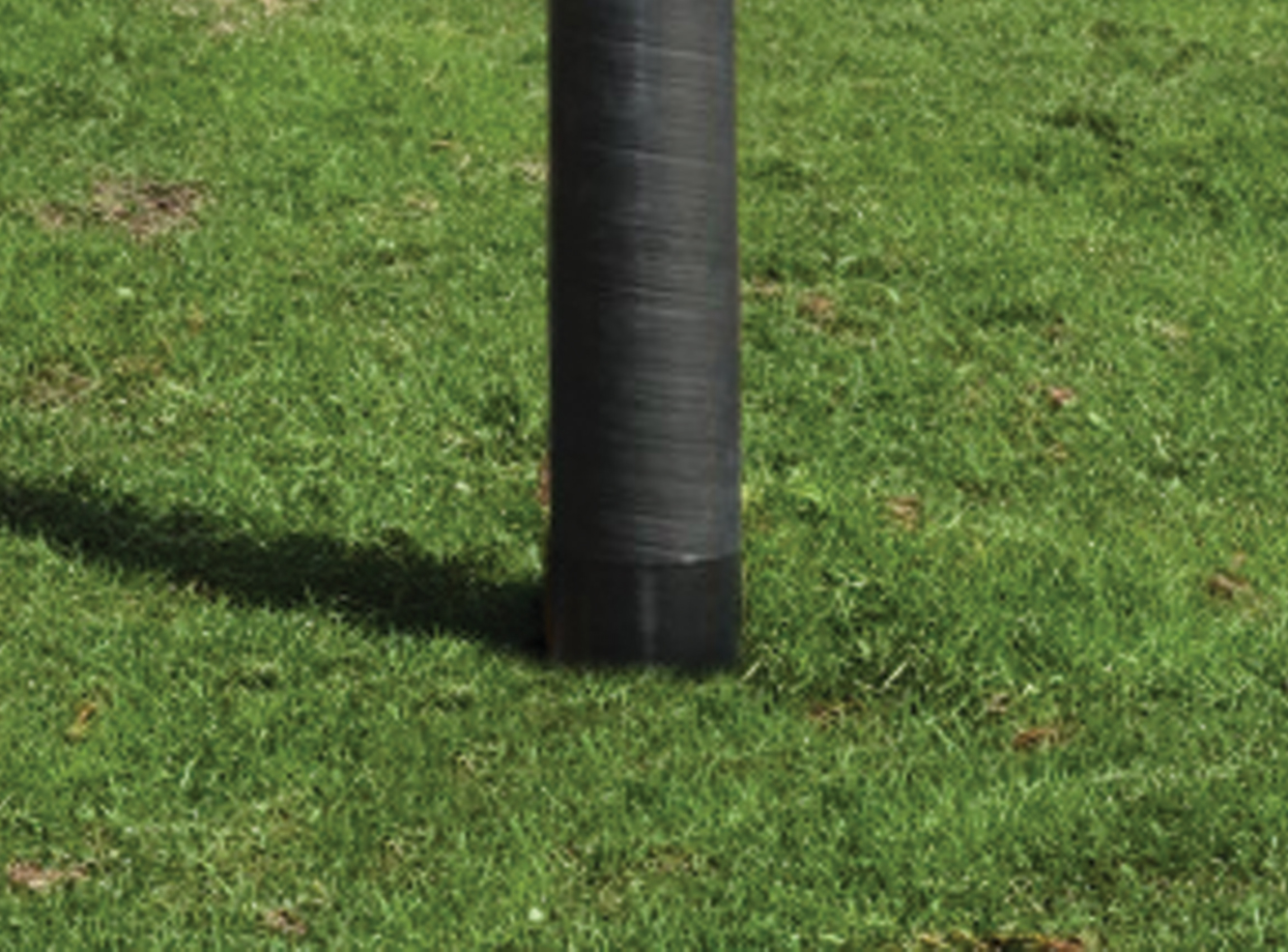

Ground Line Protection
Made from UV-protected, high-impact material, the product is available in 20″ sections, in black or bronze. Ground Line Protection is designed to be buried 10″ below ground, with 10″ of above-ground coverage. The product can be pre-attached to the pole or sold separately for field installation.

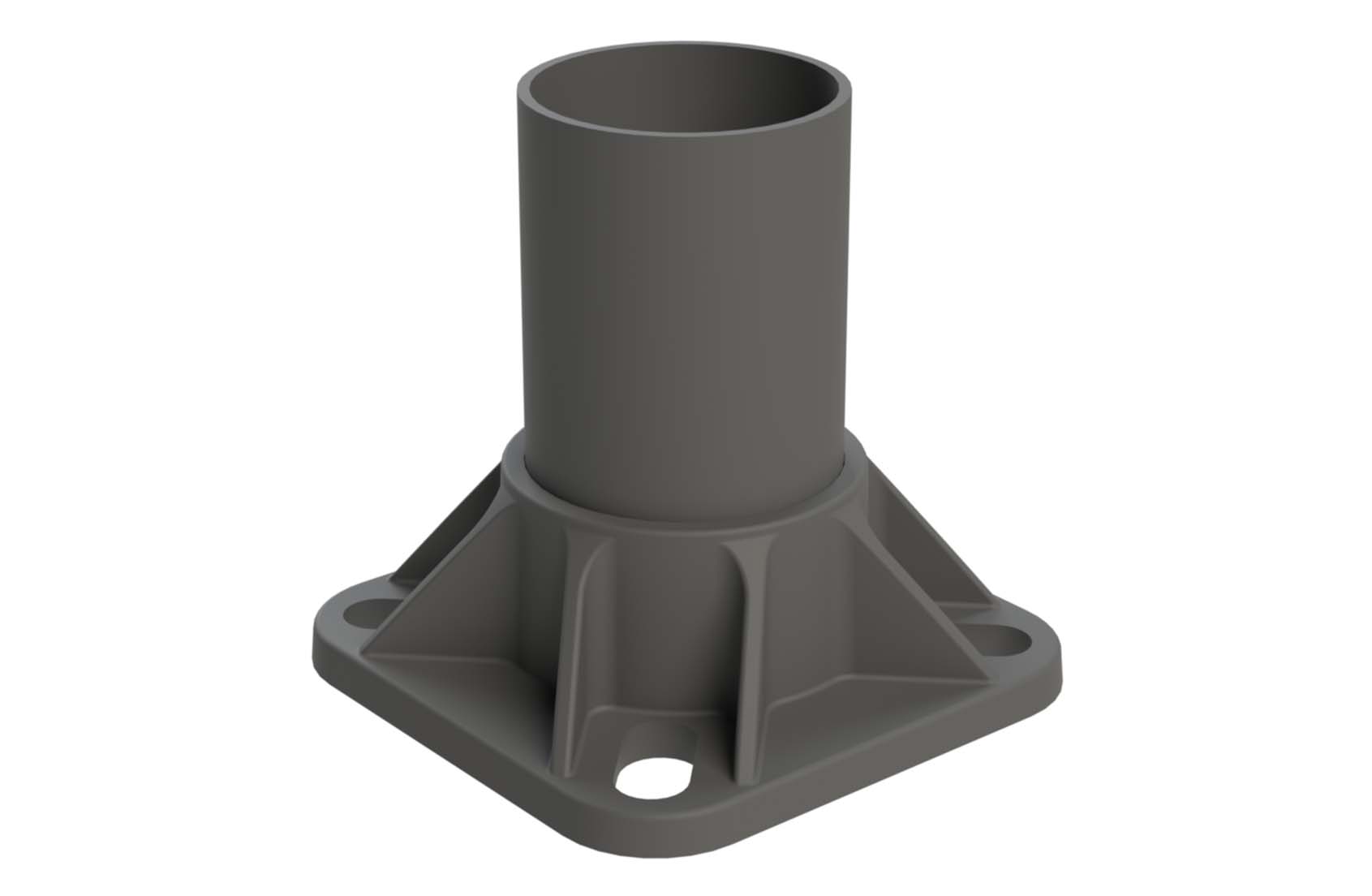

Anchor Base
Aluminum anchor bases are shipped, assembled to the pole. Anchorage kits available.

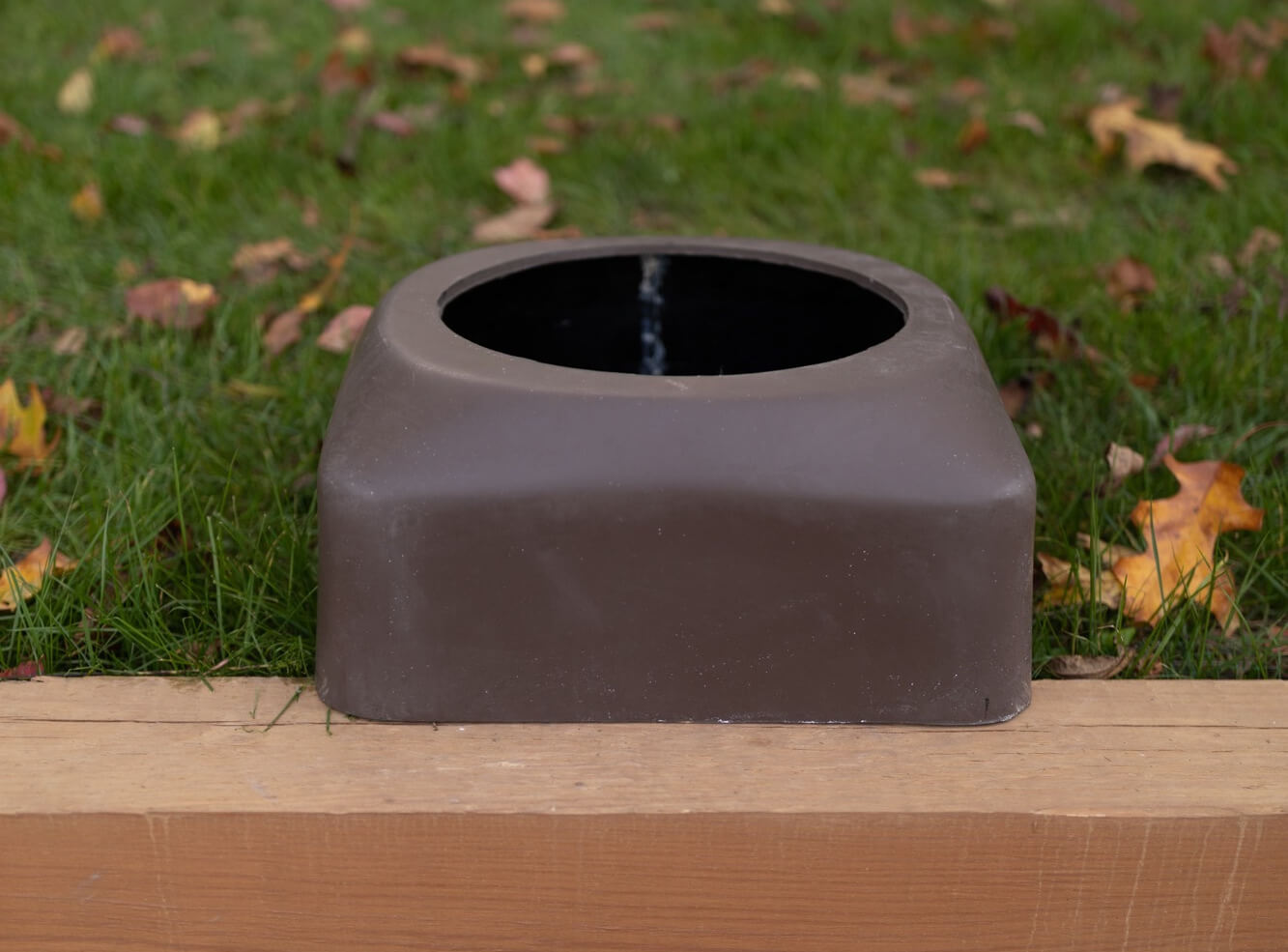

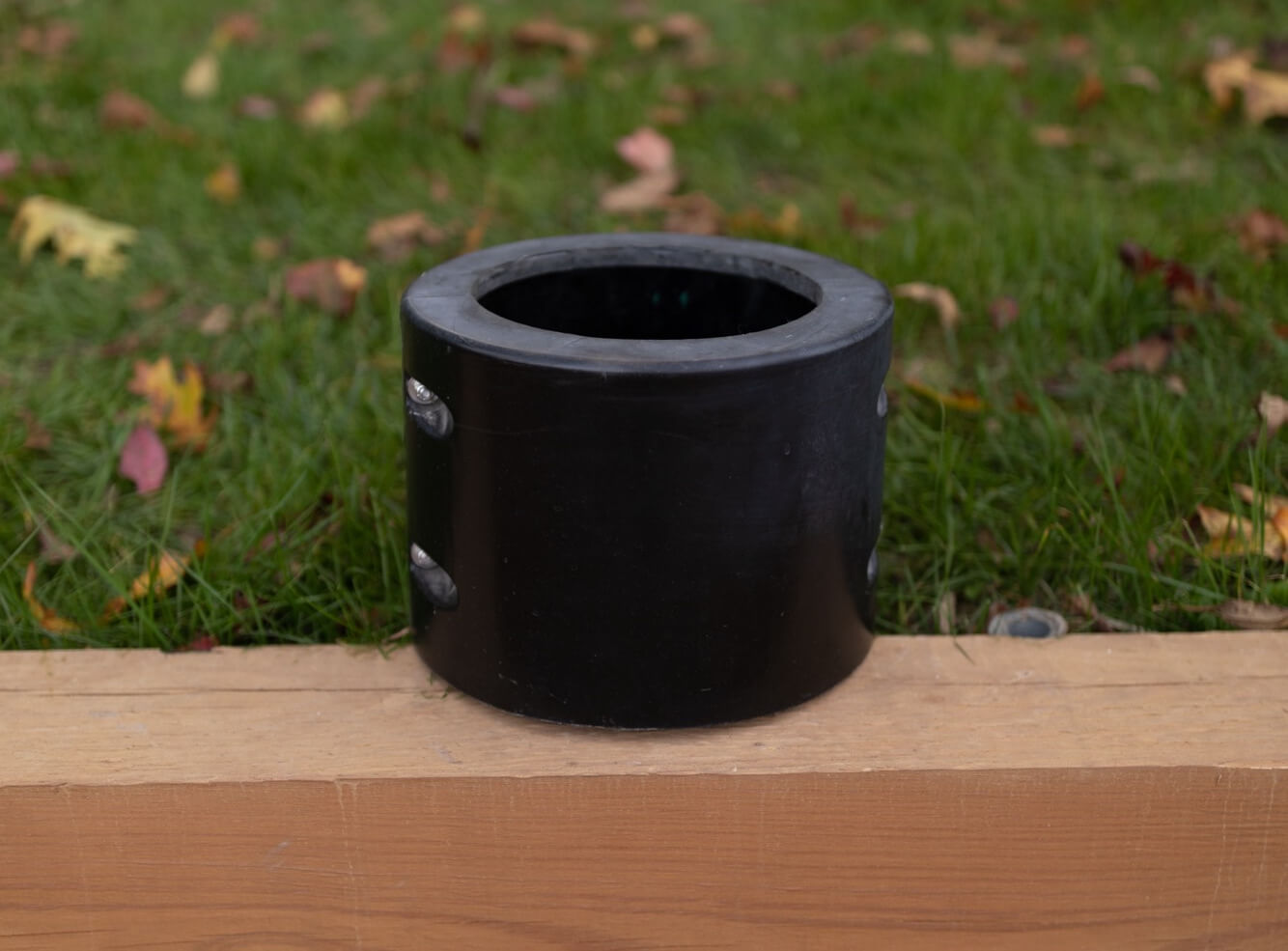

Base Covers
Base covers and decorative shrouds are available to beautify anchor base installations and add additional ground line durability on direct bury projects.
Example Product Numbers

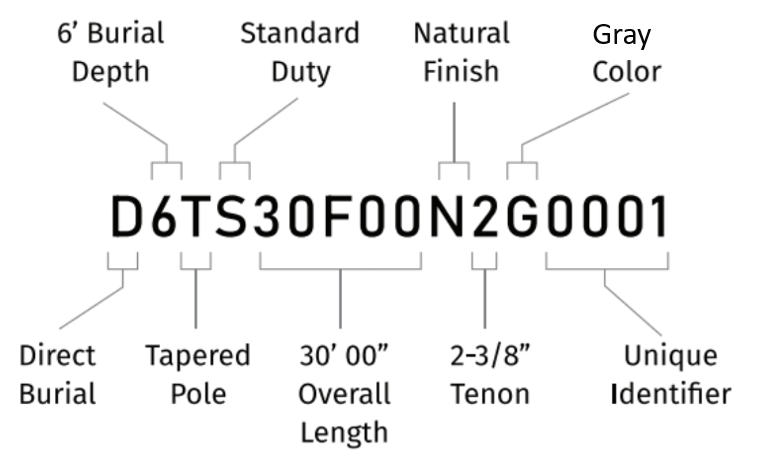

Direct Burial

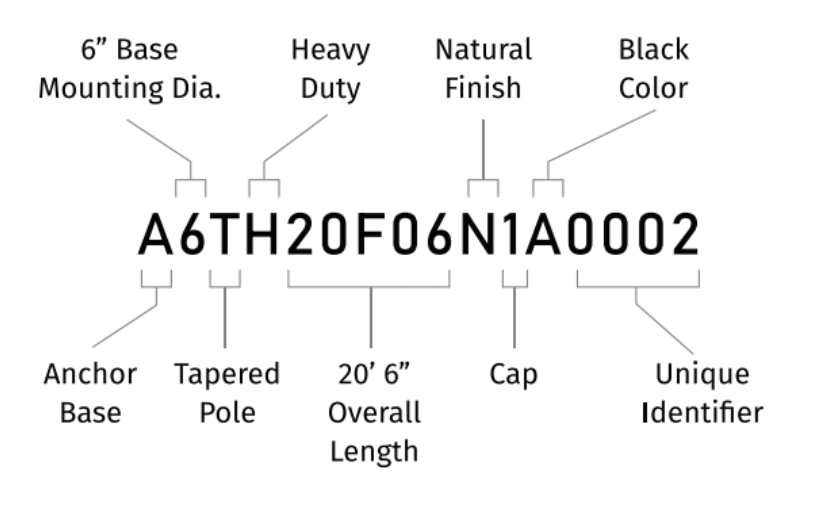

Anchor Based
